Lab 1: FPGA and MCU Setup and Testing

Introduction

In this lab I created code, and testbenches to control a 7-segment display. A user can use the 4 DIP switches to control the 7 segment display to show 0-F on the hexidecimal scale.

Technical Documentation

The source code for this project can be found in this github repository.

Block Diagram

Figure 1: Block diagram of the Verilog design.

The block diagram in Figure 1 demonstrates the overall architecture of the design. The top-level module top includes 4 submodules: the high-speed oscillator block (hf_osc), the led2 module, the led1 module, the led0 module and the seven segment display module.

Schematic

Figure 2: Schematic of the physical circuit.

Figure 2 shows which pins were connected to the 7 segment display and which parts and resistor values I used.

Finding Resistor Values

Figure 3

Figure 3 shows the physical layout of the design. The FPGA pins are connected to a resistor before entering into the seven segment display to ensure that the LED doesn’t receive too much current and thus burns out. For the seven segment display I used 1k\(\Omega\) resistors on each segment (see math below).

For the LEDs I used about 220\(\Omega\) because that is a reasonable amount for a red LED.

Results and Discussion

I tested the circuit and I was able to get all the segments to light up and control them through the dip switches. Additionally, the LEDs also worked as planned.

LED0 waves

Figure 4

LED1 waves

Figure 5

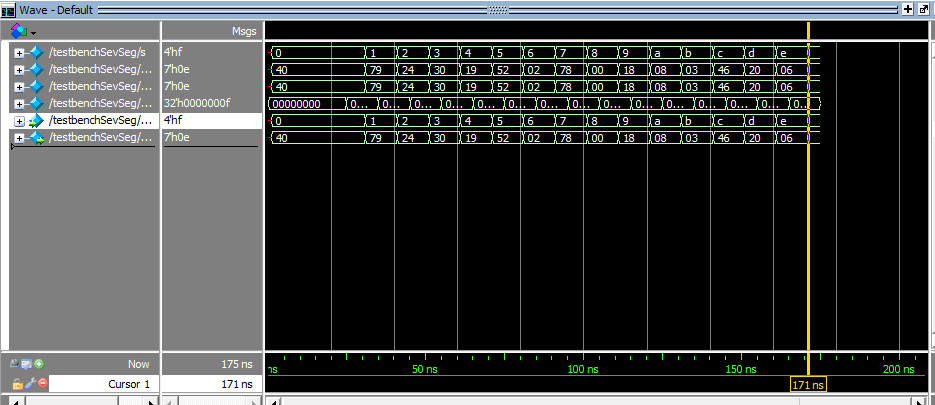

Seven Segment waves

Figure 6

I think I spent a total of 25-27 hours on this lab. I ran into major issues with programming the FPGA which ended up gating me for about 4 days. Overall, the main difficulty of this lab was getting the platforms to work and getting myself familiar with them.

AI prototype

I used the given the prompt, “Write SystemVerilog HDL to leverage the internal high speed oscillator in the Lattice UP5K FPGA and blink an LED at 2 Hz. Take full advantage of SystemVerilog syntax, for example, using logic instead of wire and reg,” and gave it to ChatGPT. I chose ChatGPT because it is free for a certain number of questions. It gave me the following code:

module led_blinker_2hz (
    output logic led
);

    // Internal oscillator signal
    logic clk_hf;

    // Instantiate the internal high-frequency oscillator
    SB_HFOSC #(
        .CLKHF_DIV("0b00") // No division: 48 MHz
    ) hfosc_inst (
        .CLKHFEN(1'b1),   // Enable oscillator
        .CLKHFPU(1'b1),   // Power up oscillator
        .CLKHF(clk_hf)    // Output clock
    );

    // Counter to generate ~2 Hz blink rate from 48 MHz clock
    localparam int COUNTER_MAX = 24_000_000; // Half period at 48 MHz
    logic [$clog2(COUNTER_MAX)-1:0] counter = 0;

    // LED state toggle
    always_ff @(posedge clk_hf) begin
        if (counter == COUNTER_MAX - 1) begin
            counter <= 0;
            led <= ~led;
        end else begin
            counter <= counter + 1;
        end
    end

endmodule

The first thing that I noticed about this code is that it doesn’t have a reset option in it. From my lab I found that you should definitely have a reset option so that you can put your LED into a known state. I then proceeded to point that out to the ChatGPT and it came back with more code. This output (not pictured) had some problems too. One it declared a counter number with no size or type. I could have nudged it more but I didn’t feel like it and didn’t know how to improve it because I wasn’t prompting it correctly.

Overall I would say the output was good as a bare bones and could have helped me think about how to do the problem but I would not copy and paste the output directly. What I decided to do was give ChatGPT one of my files but I made some errors in it, more along the lines of forgetting a semicolon. ChatGPT was great at catching those errors. So if I were to ever use AI in my job I would use it as another set of eyes to debug.
